14 Régularisation de la vraisemblance

import pandas as pd; import numpy as np
import matplotlib.pyplot as plt
from sklearn.preprocessing import StandardScaler
from sklearn.linear_model import LogisticRegressionCV, LogisticRegression
from sklearn.pipeline import Pipeline
from sklearn.model_selection import StratifiedKFold
from patsy import dmatrix

Regressions ridge, lasso et elastic-net

SAh = pd.read_csv("../donnees/SAh.csv", header=0, sep=",")

nomsvar = list(SAh.columns.difference(["chd"]))
formule = "~ 1 +" + "+".join(nomsvar)
dsX = dmatrix(formule, data=SAh)
X = dmatrix(formule, data=SAh, return_type="dataframe").\
    iloc[:,1:].to_numpy()
Y = SAh["chd"].to_numpy()

scalerX = StandardScaler().fit(X)
Xcr= scalerX.transform(X)
l0 = np.abs(Xcr.transpose().dot((Y  - Y.mean()))).max()/X.shape[0]
llc = np.linspace(0,-4,100)
ll = l0*10**llc
Cs_lasso = 1/ 0.9/ X.shape[0] / (l0*10**(llc))
Cs_ridge = 1/ 0.9/ X.shape[0] / ((l0*10**(llc)) * 100)
Cs_enet =  1/ 0.9/ X.shape[0] / ((l0*10**(llc)) / 0.5)

coefs_lasso = []
coefs_enet = []
coefs_ridge = []

Xcr = StandardScaler().fit(X).transform(X)
for a, b, c in zip(Cs_lasso, Cs_ridge, Cs_enet) :
    ## lasso
    lasso = LogisticRegression(penalty="l1", C=a, solver="liblinear", warm_start=True).fit(Xcr, Y)
    coefs_lasso.append(lasso.coef_[0])
    ## ridge
    ridge = LogisticRegression(penalty="l2", C=b, warm_start=True).fit(Xcr, Y)
    coefs_ridge.append(ridge.coef_[0])
    ## enet
    enet = LogisticRegression(penalty="elasticnet", C=c, solver="saga", l1_ratio=0.5, warm_start=True).fit(Xcr, Y)
    coefs_enet.append(enet.coef_[0])

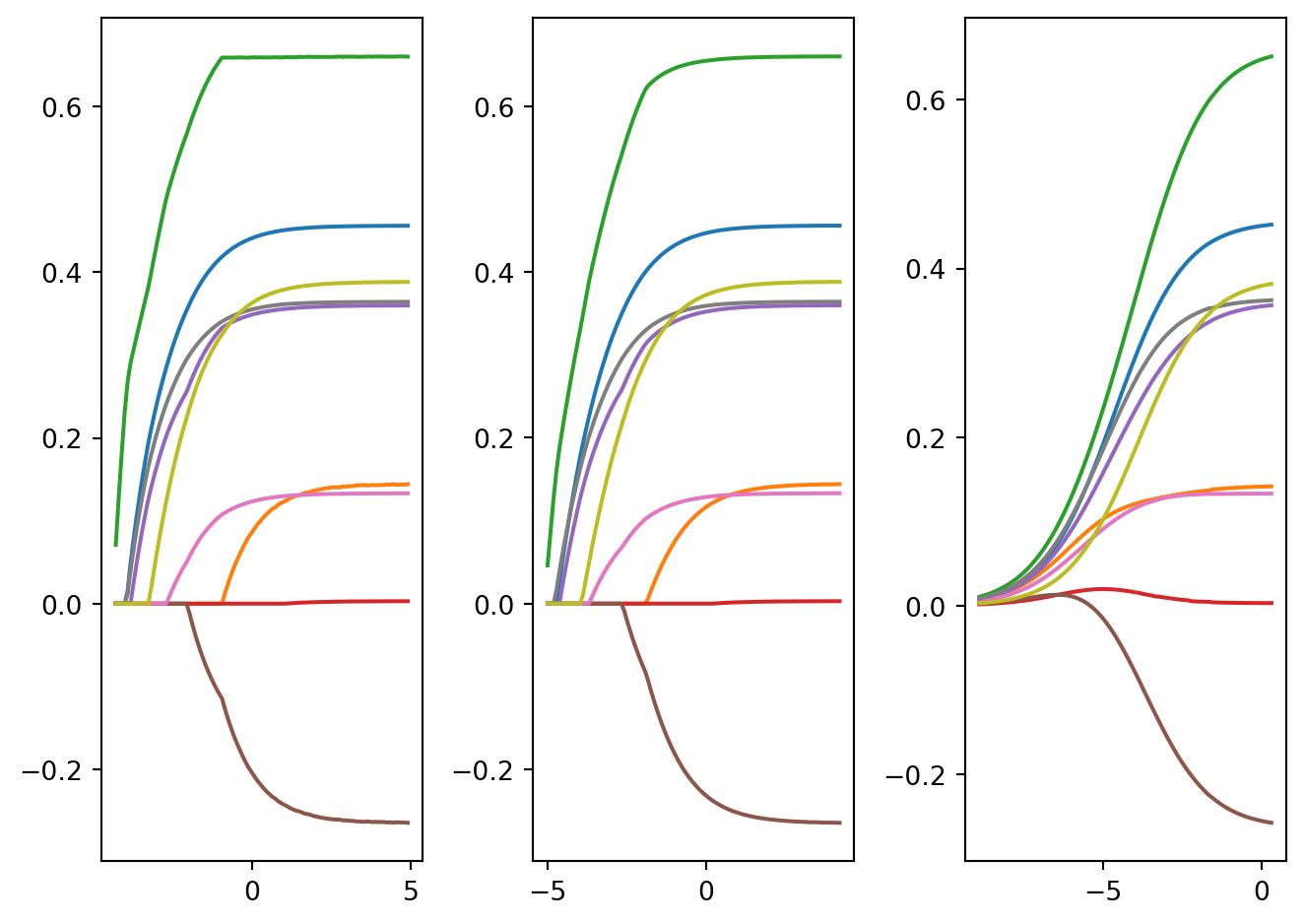

fig, (ax1, ax2, ax3) = plt.subplots(1, 3)
ax1.plot(np.log(Cs_lasso), coefs_lasso)
ax2.plot(np.log(Cs_enet), coefs_enet)
ax3.plot(np.log(Cs_ridge), coefs_ridge)
fig.tight_layout()

Choix du paramètre de régularisation \(\lambda\)

skf = StratifiedKFold(n_splits=10, shuffle=True, random_state=0)

cr = StandardScaler()
lassocvM1 =  LogisticRegressionCV(cv=skf, penalty="l1", n_jobs=3, solver="liblinear", Cs=Cs_lasso, scoring="neg_log_loss")
ridgecvM1 = LogisticRegressionCV(cv=skf, penalty="l2", n_jobs=3, Cs=Cs_ridge, scoring="neg_log_loss")
enetcvM1 = LogisticRegressionCV(cv=skf, penalty="elasticnet", n_jobs=3, Cs= Cs_enet, solver="saga", l1_ratios=[0.5], scoring="neg_log_loss")

pipe_lassocvM1 = Pipeline(steps=[("cr", cr), ("lassocv", lassocvM1)])
pipe_ridgecvM1 = Pipeline(steps=[("cr", cr), ("ridgecv", ridgecvM1)])
pipe_enetcvM1 = Pipeline(steps=[("cr", cr), ("enetcv", enetcvM1)])

pipe_lassocvM1.fit(X,Y)
pipe_ridgecvM1.fit(X,Y)
pipe_enetcvM1.fit(X,Y)

Pipeline(steps=[('cr', StandardScaler()),
                ('enetcv',
                 LogisticRegressionCV(Cs=array([6.77620047e-03, 7.43687165e-03, 8.16195745e-03, 8.95773823e-03,
       9.83110664e-03, 1.07896274e-02, 1.18416028e-02, 1.29961444e-02,
       1.42632524e-02, 1.56539020e-02, 1.71801381e-02, 1.88551803e-02,
       2.06935371e-02, 2.27111314e-02, 2.49254387e-02, 2.73556382e-02,
       3.00227792e-02, 3.29499631e-02...
       1.67851660e+01, 1.84216989e+01, 2.02177918e+01, 2.21890016e+01,
       2.43524018e+01, 2.67267309e+01, 2.93325542e+01, 3.21924420e+01,
       3.53311654e+01, 3.87759104e+01, 4.25565138e+01, 4.67057214e+01,
       5.12594715e+01, 5.62572067e+01, 6.17422149e+01, 6.77620047e+01]),
                                      cv=StratifiedKFold(n_splits=10, random_state=0, shuffle=True),
                                      l1_ratios=[0.5], n_jobs=3,
                                      penalty='elasticnet',
                                      scoring='neg_log_loss', solver='saga'))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

cr = StandardScaler()
lassocvM2 =  LogisticRegressionCV(cv=skf, penalty="l1", n_jobs=3, solver="liblinear", Cs=Cs_lasso, scoring="accuracy")
ridgecvM2 = LogisticRegressionCV(cv=skf, penalty="l2", n_jobs=3, Cs=Cs_ridge, scoring="accuracy")
enetcvM2 = LogisticRegressionCV(cv=skf, penalty="elasticnet", n_jobs=3, Cs= Cs_enet, solver="saga", l1_ratios=[0.5], scoring="accuracy")
pipe_lassocvM2 = Pipeline(steps=[("cr", cr), ("lassocv", lassocvM2)])
pipe_ridgecvM2 = Pipeline(steps=[("cr", cr), ("ridgecv", ridgecvM2)])
pipe_enetcvM2 = Pipeline(steps=[("cr", cr), ("enetcv", enetcvM2)])
pipe_lassocvM2.fit(X,Y)
pipe_ridgecvM2.fit(X,Y)
pipe_enetcvM2.fit(X,Y)


cr = StandardScaler()
lassocvM3 =  LogisticRegressionCV(cv=skf, penalty="l1", n_jobs=3, solver="liblinear", Cs=Cs_lasso, scoring="roc_auc")
ridgecvM3 = LogisticRegressionCV(cv=skf, penalty="l2", n_jobs=3, Cs=Cs_ridge, scoring="roc_auc")
enetcvM3 = LogisticRegressionCV(cv=skf, penalty="elasticnet", n_jobs=3, Cs= Cs_enet, solver="saga", l1_ratios=[0.5], scoring="roc_auc")
pipe_lassocvM3 = Pipeline(steps=[("cr", cr), ("lassocv", lassocvM3)])
pipe_ridgecvM3 = Pipeline(steps=[("cr", cr), ("ridgecv", ridgecvM3)])
pipe_enetcvM3 = Pipeline(steps=[("cr", cr), ("enetcv", enetcvM3)])
pipe_lassocvM3.fit(X,Y)
pipe_ridgecvM3.fit(X,Y)
pipe_enetcvM3.fit(X,Y)
etape_lassoM3 = pipe_lassocvM3.named_steps["lassocv"]
etape_lassoM3.Cs_
etape_lassoM3.scores_[1]
etape_lassoM3.scores_[1].mean(axis=0)
etape_lassoM3.scores_[1].std(axis=0)/np.sqrt(10)

etape_lassoM1 = pipe_lassocvM1.named_steps["lassocv"]
etape_lassoM2 = pipe_lassocvM2.named_steps["lassocv"]
etape_lassoM3 = pipe_lassocvM3.named_steps["lassocv"]
etape_ridgeM1 = pipe_ridgecvM1.named_steps["ridgecv"]
etape_ridgeM2 = pipe_ridgecvM2.named_steps["ridgecv"]
etape_ridgeM3 = pipe_ridgecvM3.named_steps["ridgecv"]
etape_enetM1 = pipe_enetcvM1.named_steps["enetcv"]
etape_enetM2 = pipe_enetcvM2.named_steps["enetcv"]
etape_enetM3 = pipe_enetcvM3.named_steps["enetcv"]

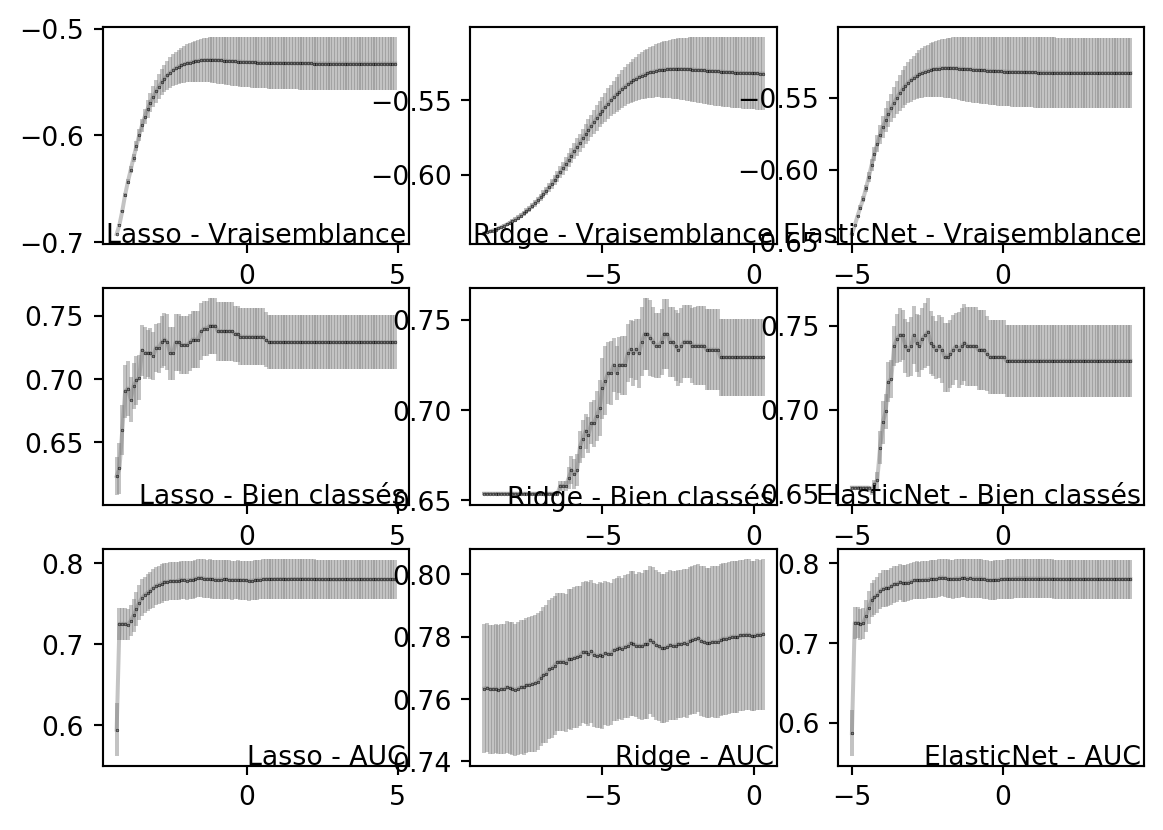

fig, axs = plt.subplots(3, 3)
axs[0,0].errorbar(np.log(Cs_lasso), etape_lassoM1.scores_[1].mean(axis=0), etape_lassoM1.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[0,0].text(.99, .1, "Lasso - Vraisemblance", ha="right", va="top",transform=axs[0,0].transAxes)
axs[0,1].errorbar(np.log(Cs_ridge), etape_ridgeM1.scores_[1].mean(axis=0), etape_ridgeM1.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[0,1].text(.99, .1, "Ridge - Vraisemblance", ha="right", va="top",transform=axs[0,1].transAxes)
axs[0,2].errorbar(np.log(Cs_enet), etape_enetM1.scores_[1][:,:,0].mean(axis=0), etape_enetM1.scores_[1][:,:,0].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[0,2].text(.99, .1, "ElasticNet - Vraisemblance", ha="right", va="top",transform=axs[0,2].transAxes)
##
axs[1,0].errorbar(np.log(Cs_lasso), etape_lassoM2.scores_[1].mean(axis=0), etape_lassoM2.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[1,0].text(.99, .1, "Lasso - Bien classés", ha="right", va="top",transform=axs[1,0].transAxes)
axs[1,1].errorbar(np.log(Cs_ridge), etape_ridgeM2.scores_[1].mean(axis=0), etape_ridgeM2.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[1,1].text(.99, .1, "Ridge - Bien classés", ha="right", va="top",transform=axs[1,1].transAxes)
axs[1,2].errorbar(np.log(Cs_enet), etape_enetM2.scores_[1][:,:,0].mean(axis=0), etape_enetM2.scores_[1][:,:,0].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[1,2].text(.99, .1, "ElasticNet - Bien classés", ha="right", va="top",transform=axs[1,2].transAxes)
##
axs[2,0].errorbar(np.log(Cs_lasso), etape_lassoM3.scores_[1].mean(axis=0), etape_lassoM3.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[2,0].text(.99, .1, "Lasso - AUC", ha="right", va="top",transform=axs[2,0].transAxes)
axs[2,1].errorbar(np.log(Cs_ridge), etape_ridgeM3.scores_[1].mean(axis=0), etape_ridgeM3.scores_[1].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[2,1].text(.99, .1, "Ridge - AUC", ha="right", va="top",transform=axs[2,1].transAxes)
axs[2,2].errorbar(np.log(Cs_enet), etape_enetM3.scores_[1][:,:,0].mean(axis=0), etape_enetM3.scores_[1][:,:,0].std(axis=0)/np.sqrt(10), fmt="-o", mec="black", mfc="black", ms=0.2, color="#80808077")
axs[2,2].text(.99, .1, "ElasticNet - AUC", ha="right", va="top",transform=axs[2,2].transAxes)

Text(0.99, 0.1, 'ElasticNet - AUC')

pipe_lassocvM3.predict_proba(X[[14,49],:])

array([[0.46132249, 0.53867751],
       [0.85489843, 0.14510157]])

Group lasso

X1 = np.concatenate((np.repeat("A", 60), np.repeat("B", 90), np.repeat("C", 50)))
X2 = np.concatenate((np.repeat("E", 40), np.repeat("F", 60), np.repeat("G", 55), np.repeat("H",45)))
rng = np.random.default_rng(1298)
X3 = rng.uniform(low=0.0, high=1.0, size=200)
rng = np.random.default_rng(2381)
Y = rng.uniform(low=0.0, high=1.0, size=200).round(0)
Y1 = np.sign(2*Y-1)
donnees = pd.DataFrame({"X1": X1, "X2": X2, "X3": X3, "Y": Y, "Y1": Y1})
